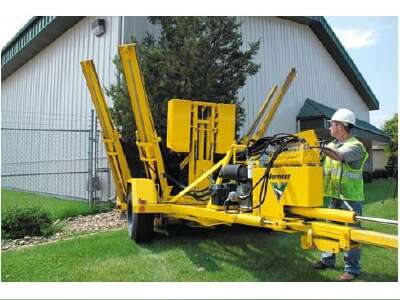

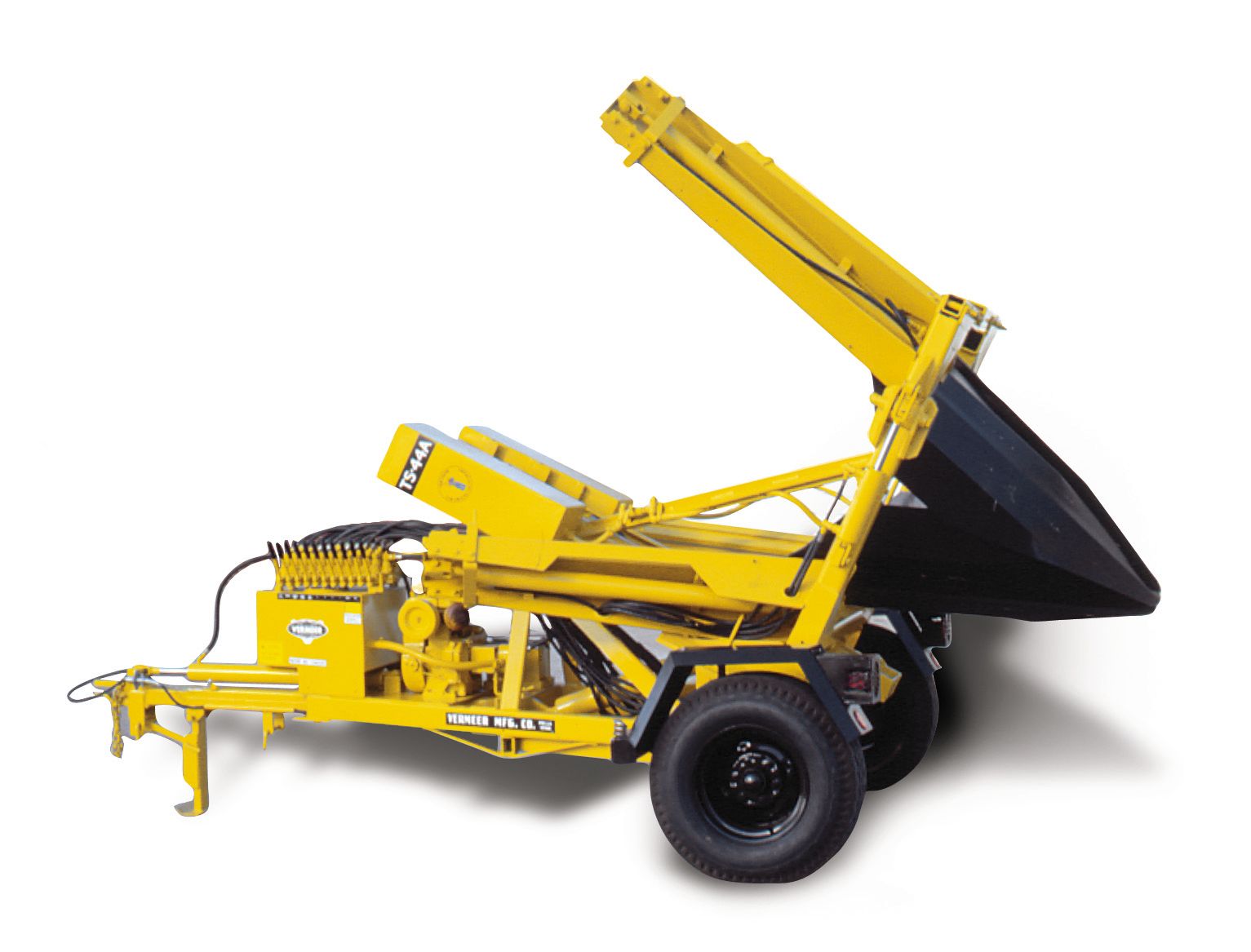

This equipment is not for sale and is for rental information only. For a reliable, trailer-mounted tree spade, look to our top-selling TS44A tree spade. Easy to operate, easy to maneuver, the TS44A is ideal for trees up to 4 inches / 10 centimeters in diameter. It features a wide rear-gate opening to minimize tree damage and four bolt-on spades that make blade replacement a breeze. Not only is it easy to operate, the TS44A is easy to maintain, too, because it features hydraulic cylinders.
| Manufacturer | Vermeer |
| Model | TS44A |
| Category | Rental |
| Price | Request a Quote |
| Year | 2024 |
| Weight | 5390 lbs (2444.9 kg) |
| Ball Weight | 1173 lbs (532.1 kg) |
| Ball Diameter | 44 in (111.8 cm) |
| Ball Depth | 40 in (101.6 cm) |
| Tree Size, Approximate | 4" trunk diameter |
| Spade Material | T-1A alloy steel |
| Rear Frame Pivot | Hydraulic, self-locking |
| Ball Angle | 28 deg |
| Spade Digging Lubrication | Water, gravity fed |
| Water Tank Capacity | 33 gal (124.9 L) |
| Width (Spades Up) | 116 in (294.6 cm) |
| Width (Spades Down) | 88 in (223.5 cm) |
| Width (Spades Up, Pivots Open) | 156 in (396.2 cm) |
| Width (Transport) | 92 in (233.7 cm) |
| Length (Spades Up) | 223 in (566.4 cm) |
| Length (Spades Down) | 211 in (535.9 cm) |
| Length (Transport) | 190 in (482.6 cm) |
| Height (Spades Up) | 105 in (266.7 cm) |
| Height (Spades Down) | 80 in (203.2 cm) |
| Height (Spade Masts, Spades Down) | 60 in (152.4 cm) |
| Height (Transport) | 121 in (307.3 cm) |
| Pump Capacity | 7.2 gal (27.3 L) |
| Cylinders (pivot) | 3" x 8", 1 1/8" rod |
| Cylinders (tilt) | 4" x 21", 2" rod |
| Cylinders (spade) | 3" x 48", 1 1/4" rod |
| Cylinders (lift) | 3" x 48", 1 3/8 rod |
| Oil Type | Vermeer VMF |
| System relief pressure | 2000 psi (137.9 bar) |
| Oil Tank Capacity | 18 gal (68.1 L) |
| Oil Filter | 10 micron, full flow |
